Crack Detective: A Practical Guide to Reading Structural Cracks in Building Construction
Cracks are among the most common and most misunderstood symptoms in existing buildings. Some cracks are benign. Some indicate durability concerns. Others signal structural or support-related problems that can worsen if ignored. The challenge is not spotting cracks—the challenge is knowing what they mean.
The Crack Detective Mindset
Before asking “How do we fix it?” several key questions must be considered. What mechanism caused the crack? Is it active or dormant? Is it driven by load, movement, durability, or chemistry? And is the underlying driver still present?
Diagnosis always comes before repair. Misdiagnosis is one of the most common reasons concrete and masonry repairs fail.

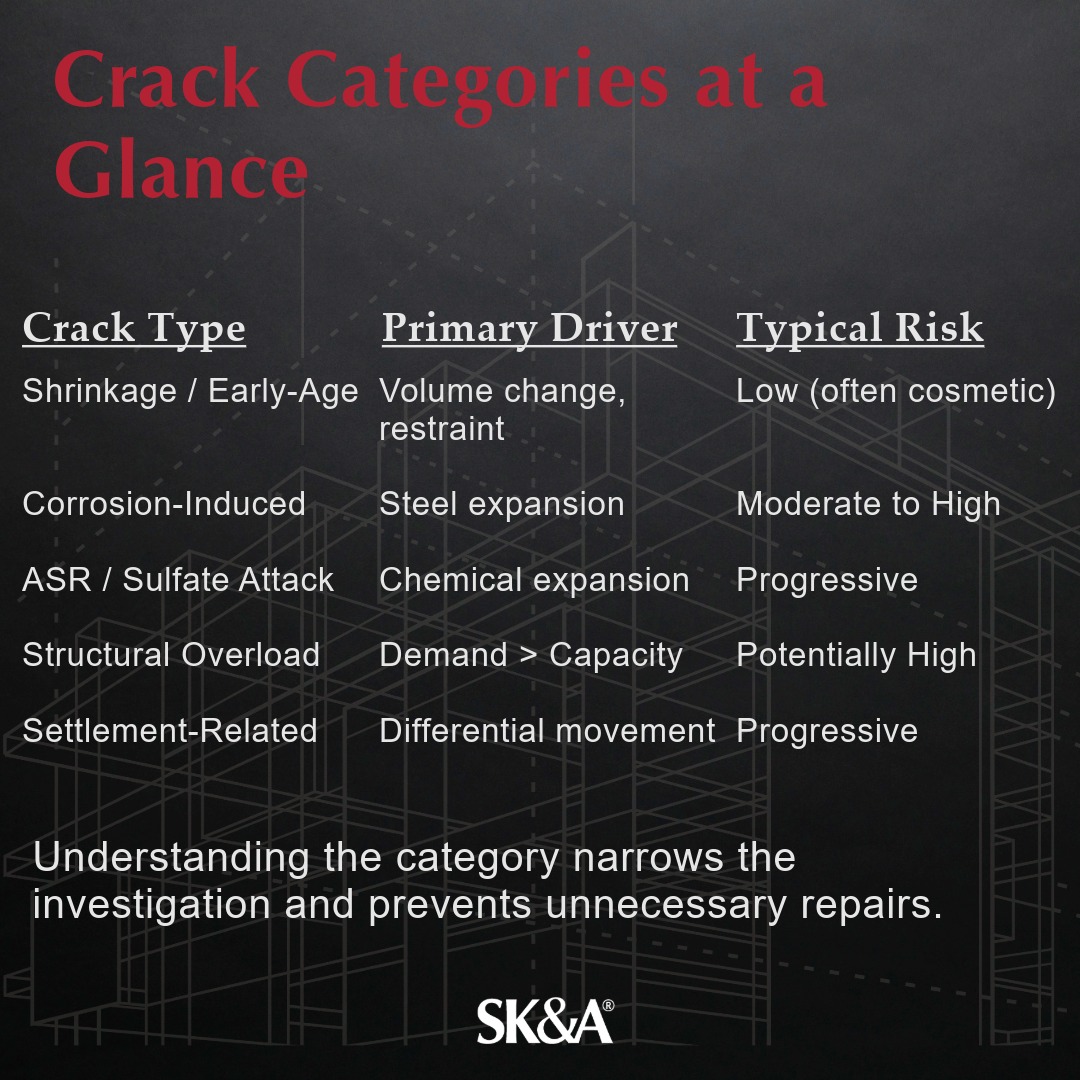

Crack Categories at a Glance
Structural cracks generally fall into several categories, each with distinct causes and risks. Shrinkage or early-age cracks are driven by volume change and restraint and typically carry low risk, often being cosmetic in nature. Corrosion-induced cracks are driven by steel expansion and can present a moderate to high risk. Cracks related to ASR or sulfate attack are caused by chemical expansion and may lead to progressive deterioration. Structural overload cracks occur when demand exceeds capacity and may present a potentially high risk. Settlement-related cracks are driven by differential movement and can also become progressive if the underlying cause is not addressed.
Understanding the category narrows the investigation and prevents unnecessary repairs.

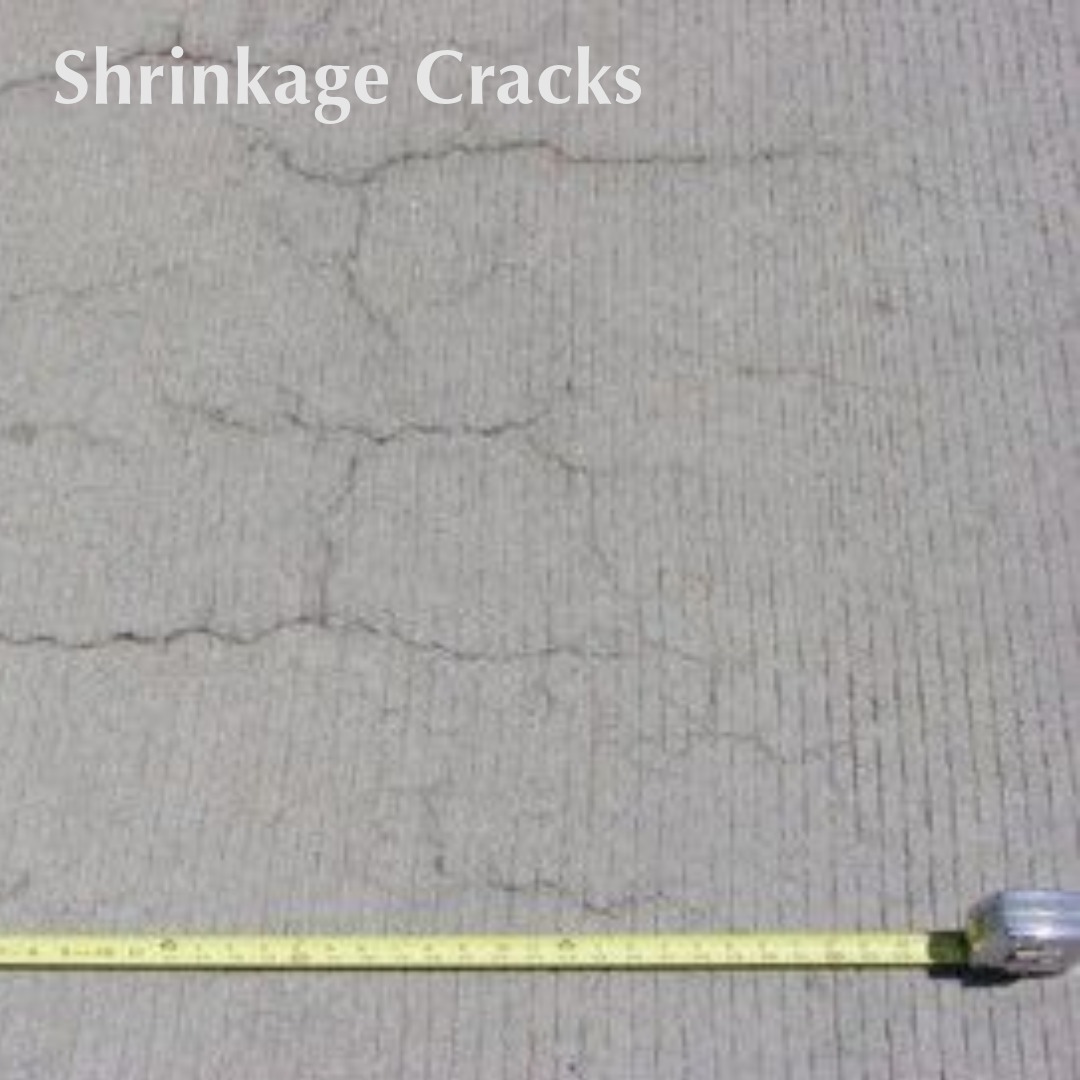

Shrinkage and Early-Age Cracks
Shrinkage and early-age cracks are typically driven by plastic or drying shrinkage, restraint during curing, and temperature and moisture loss. These cracks often appear as random or patterned cracking and are frequently shallow and surface-oriented. They commonly appear early in the life of the structure.
These cracks are usually not structural; however, they can lead to durability issues if left unprotected.

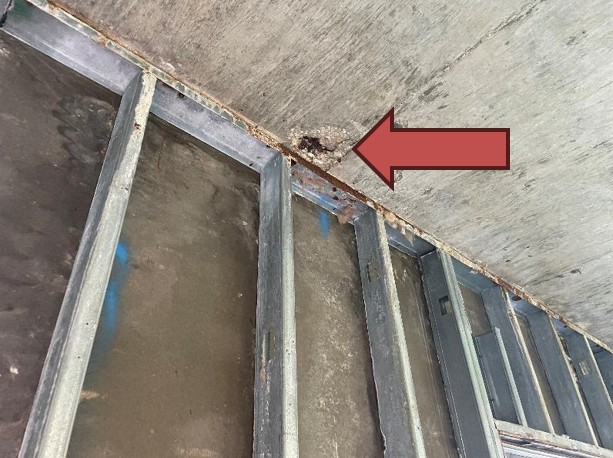

Corrosion-Induced Cracks
Corrosion-induced cracks are driven by corrosion of reinforcing steel and the volumetric stress placed on concrete by the expansion of corroding metal. These cracks often follow reinforcement lines and may be accompanied by rust staining, delamination, and spalling.
In these cases, the crack is the symptom and corrosion is the disease. Surface repairs often fail when corrosion drivers, such as moisture and chlorides, remain active.

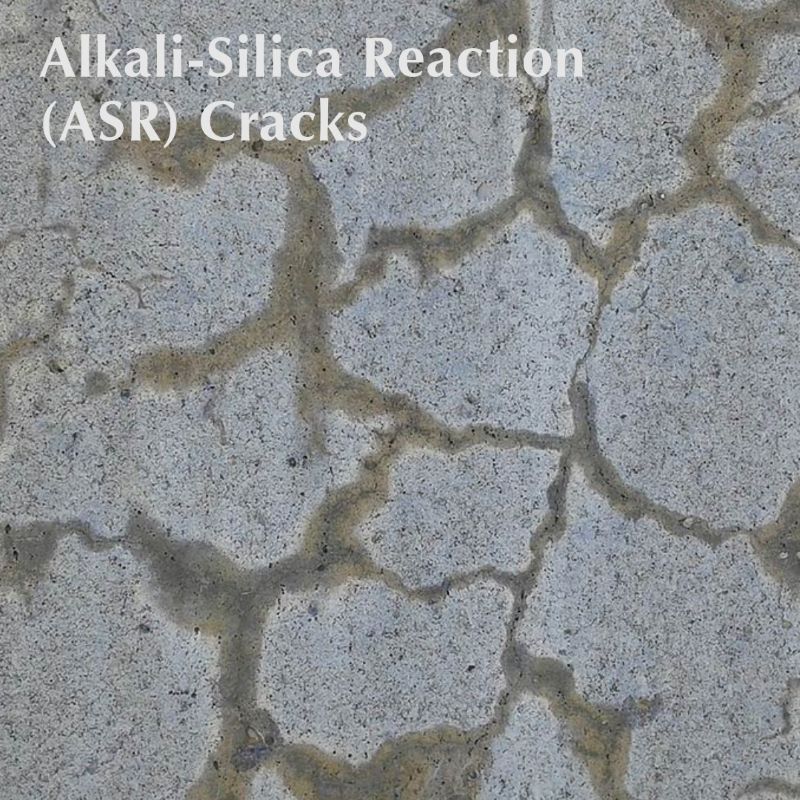

ASR and Sulfate Attack
Cracking associated with alkali-silica reaction (ASR) and sulfate attack is driven by chemical expansion and sustained moisture availability. Typical attributes include random or map cracking, Y-shaped or non-structural crack layouts, and progressive internal distress.
Surface repairs alone do not stop internal chemical reactions. Maintenance measures must instead focus on moisture control and long-term planning.

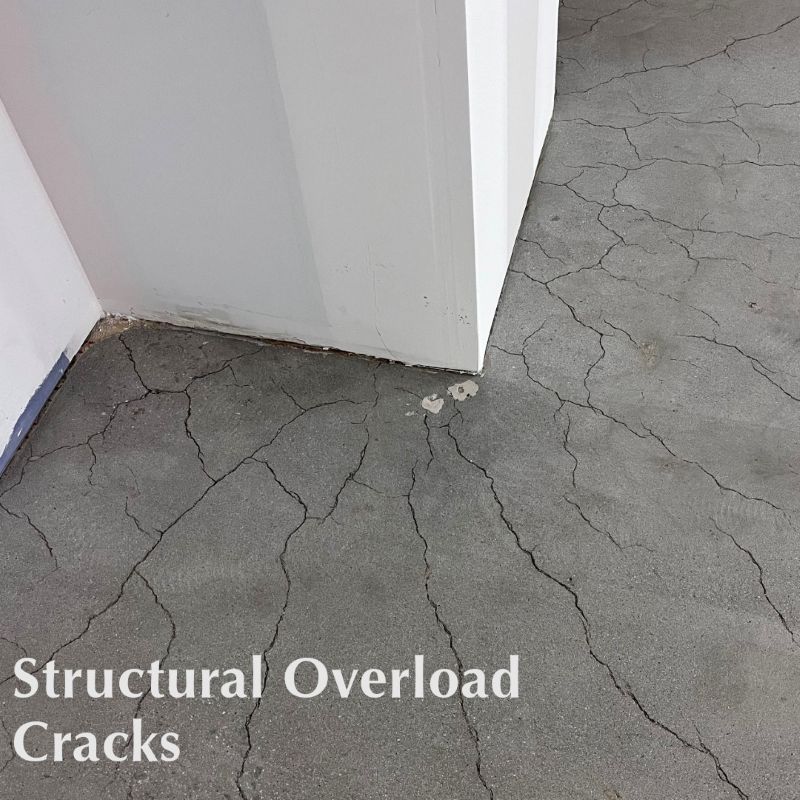

Structural Overload Cracks
Structural overload cracks occur when demand exceeds capacity, when building use or loading changes, or when altered load paths or construction deviations are introduced. Typical attributes include flexural cracks that are vertical and tension-driven, shear cracks that are diagonal near supports, and punching shear cracks that form around columns.
In these cases, crack orientation, location, and deflection trends matter more than crack width alone. Repair should come only after structural capacity has been evaluated.

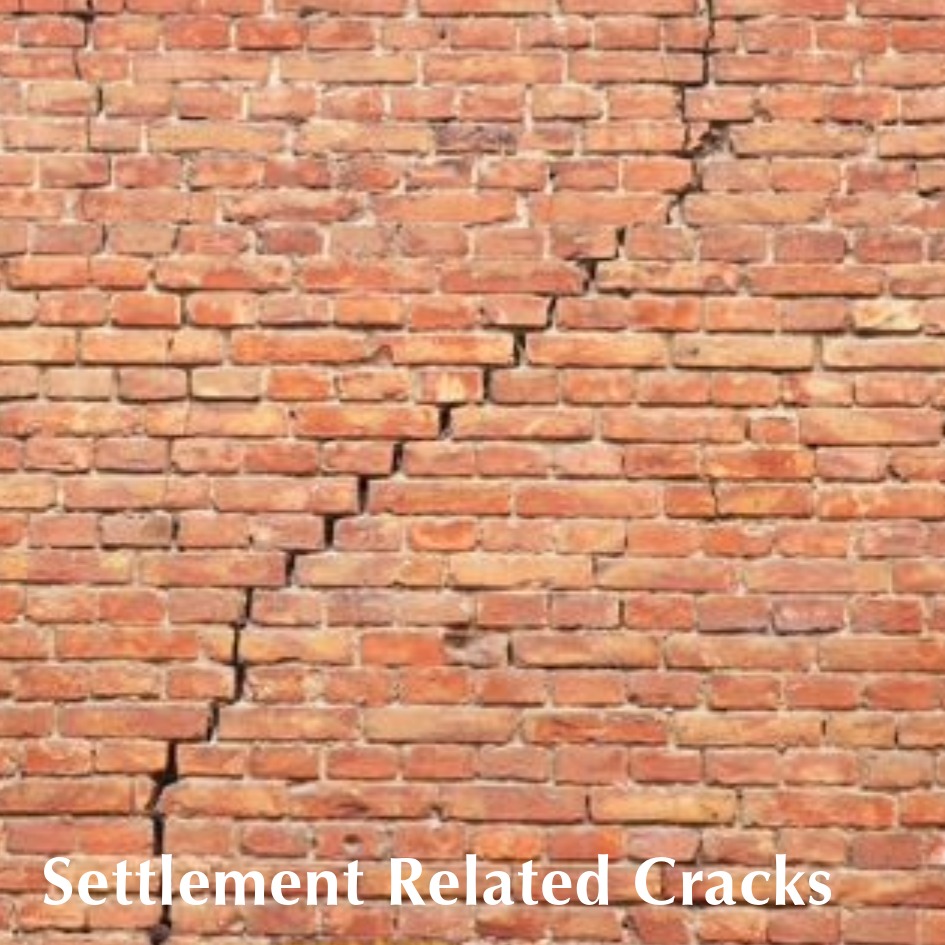

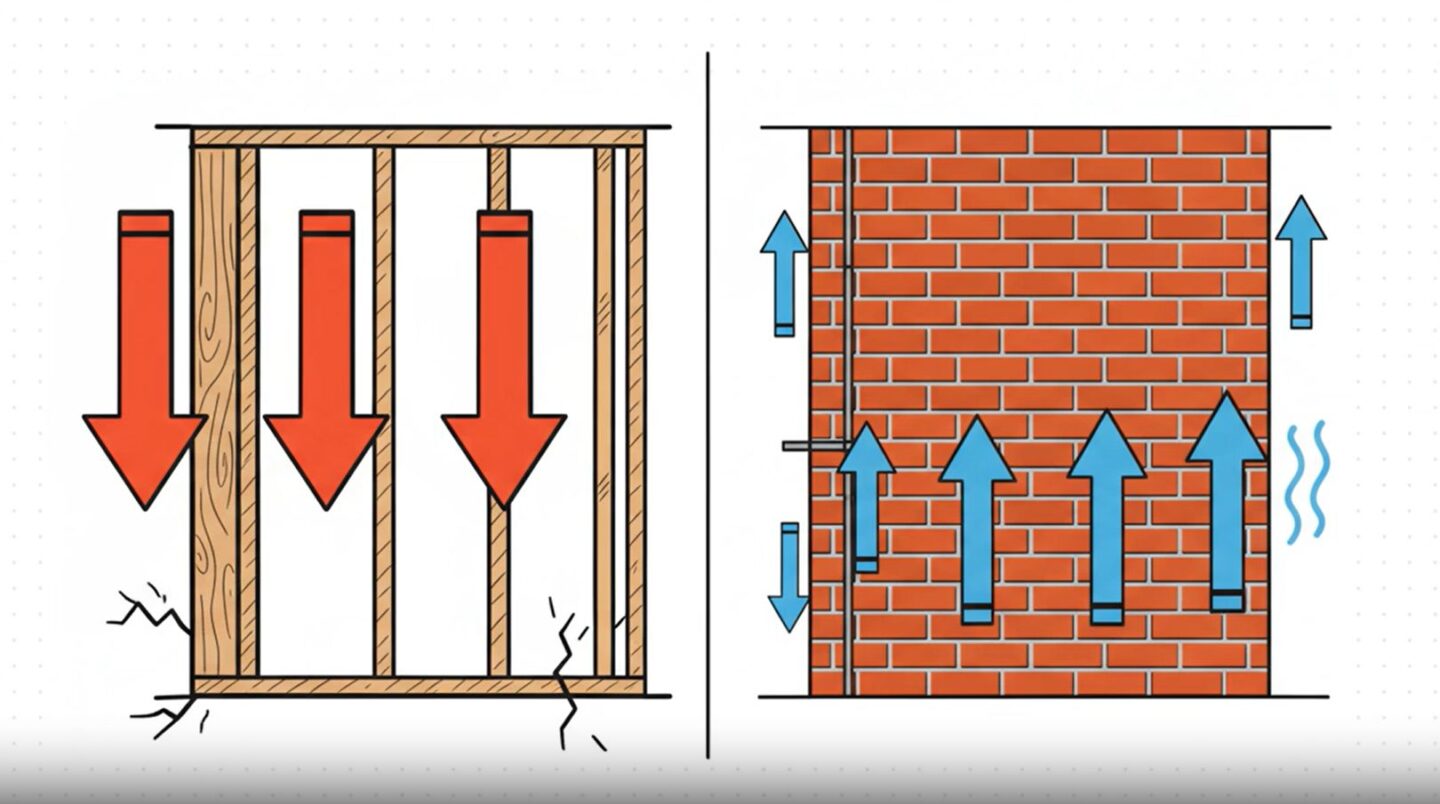

Settlement-Related Cracks
Settlement-related cracks are driven by differential foundation movement, soil consolidation or shrink-swell behavior, and moisture-related ground changes. These cracks often appear as stair-step cracking, slab separation from walls or columns, or sloped floors and structural misalignment.
Uniform movement is often tolerable, but differential movement is what cracks structures. Cracks will continue to return until the movement is addressed.
Repair Strategy Hierarchy
Effective crack management follows a clear sequence. The first step is to diagnose the mechanism. Next, stabilize the underlying driver. Then repair damaged elements. Finally, strengthen when demand exceeds capacity.
Skipping these steps often leads to recurring distress and escalating costs.

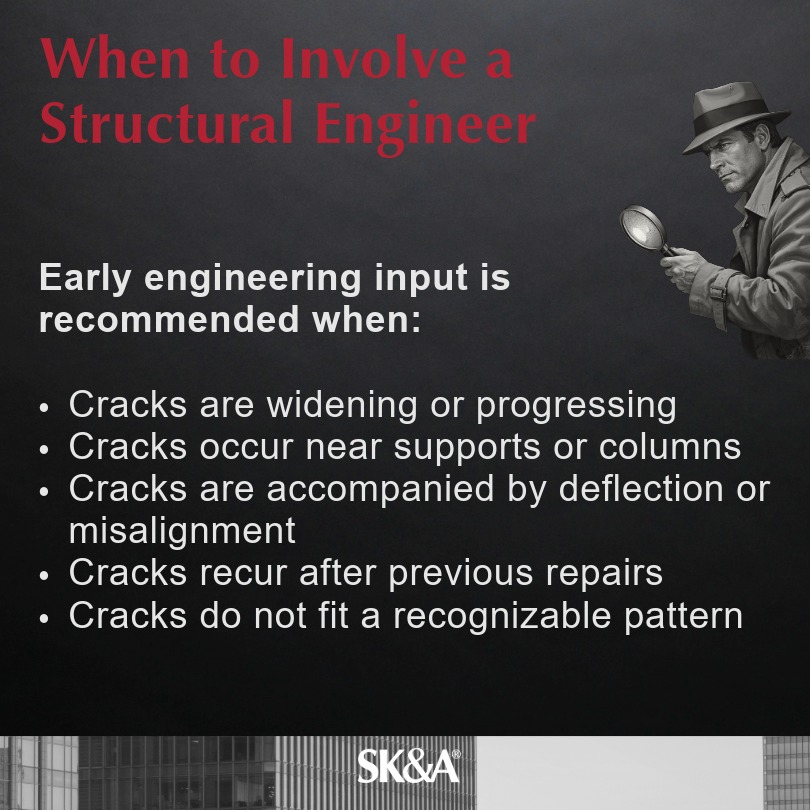

When to Involve a Structural Engineer
Early engineering input is recommended when cracks are widening or progressing, when cracks occur near supports or columns, when cracks are accompanied by deflection or misalignment, when cracks recur after previous repairs, or when cracks do not fit a recognizable pattern.
